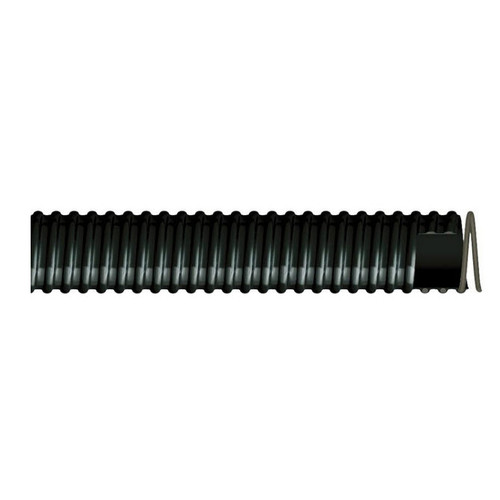

SAE 100R4 Suction Hose
100R4AT Hydraulic Hose

Tube: Black, Conductive NBR
Reinforcement: Textile Reinforced with four Spiral Wire Helix to prevent collapsing
Cover: Black CR- oil, fuel, weather, ozone and abrasion-resistant
Applications:Low pressure return lines with half the bend radius requirements of SAE J517 100R4, service with petroleum based hydraulic fluids, Water/ Glycol and Water-fire resistant hydraulic Fluids, oil, lubricants, crude oils, fuel oils and water.

Recommended for hydraulic system service with petroleum and water-base fluids, or general industrial service.

Interchanges with:

  • Weatherhead H104
  • Aeroquip FC211
  • Parker 421


  • Item# Item Name Price Per Ft Qty Add
    R4-3-4 SAE 100R4 Suction Hose - 3/4"
    $8.16
    R4-1 SAE 100R4 Suction Hose - 1" *
    $8.93
    R4-1-1-4 SAE 100R4 Suction Hose - 1-1/4"
    $10.53
